Universal Render Pipeline
With this addition to our engine, you can now create playables for your URP games!
On this page you can find out what elements of Unity's URP Unity Playworks Plugin currently supports, as well as see example scenes running in Unity Playworks Plugin of certain features.
If you would like to skip straight to the supported features and known issues lists, click here. Or if you would like to know what URP versions are supported click here.
Any issues with using URP with Luna? Check out the common issues section related to URP.
URP Sample Scene in Luna

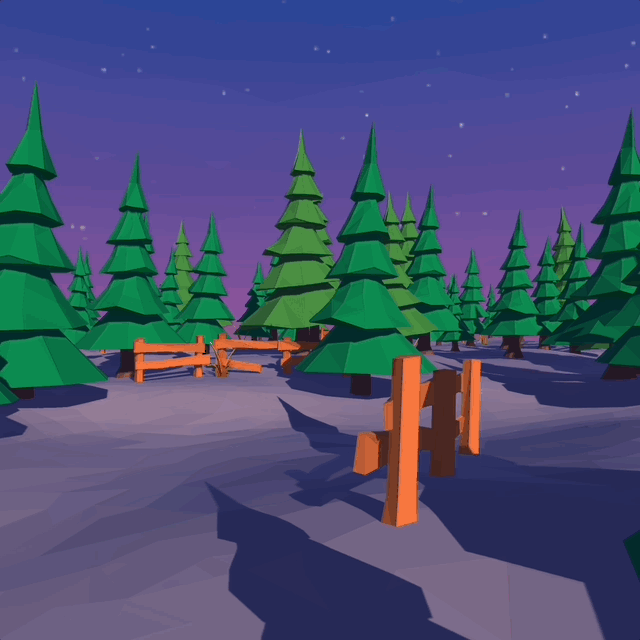

The first thing you see when you create a new URP project is a sample scene by Unity.
With minimum amount of corrections weve got this scene running beautifully in Luna:
- Angle 1
- Angle 2
- Angle 3
Click here to test the scene above in your browser.
Shader Graph
A headline of what we now support with URP is the powerful Shader Graph tool!
Shaders created within this tool will be identical between Unity Playworks Plugin and Unity, below you can see an example of a URP shader working great in our engine:
Click here to test the scene above in your browser.
(Shader in use is the FREE Skybox Extended Shader from the Unity Asset Store)
Here is another example.
(Shader in use is the PolyArt - Ancient Village Pack)
Vertical Fog

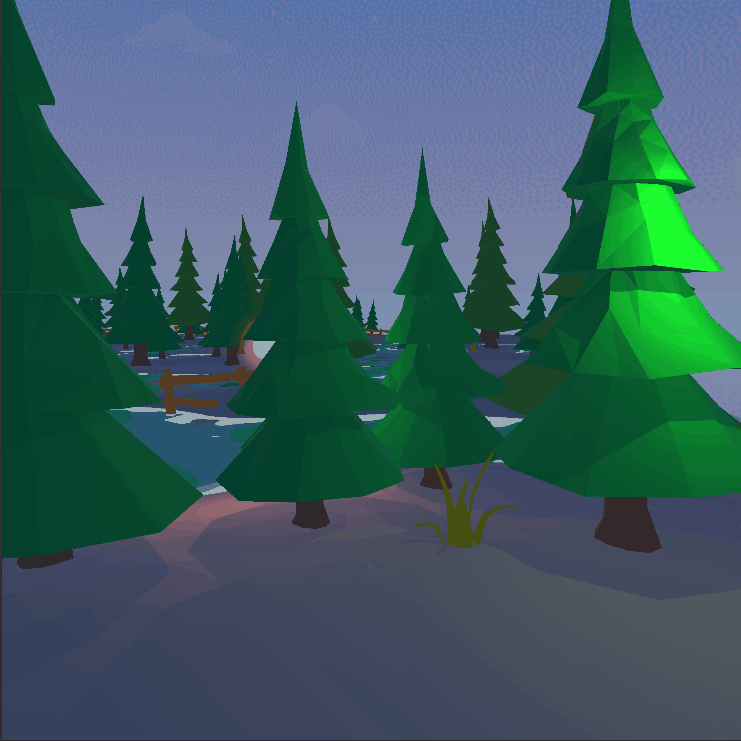

We also have implemented support for URP's Vertical Fog. Below you can see an example scene rendered in our engine:
Click here to test the scene above in your browser.
URP Lighting
Below you can see a demonstration of URP lights (Directional & Point lights) affecting planes and the crystals, “Weathering“ shader on Dancing Girl, Dissolve shader on black sphere & red cube, “Glow“ effect shader on grey sphere:
Click here to test the scene above in your browser.
URP Version Support List
Versions supported:
| Unity Version | URP Version | Supported? |
|---|---|---|
| 2019.4 | 7.6 | Yes |
| 2020.3 | 10.4 | Yes |
| 2021.3 | 12.1 | Yes |
| 2022.2 | 14.0 | No (Support for this version is coming soon) |
Supported features and known issues
A list of features detailing if we support them or not, if there will be noticeable differences between how the feature looks in Unity & Luna, and if we have plans to implement a feature in the future.
Shader Graph features
| Feature name | Supported? | Immediate plans to implement? |
|---|---|---|
| NormalFromTexture node | No | No, as WebGL doesn't support it. |
| Dither node | Yes (With slight differences in Luna) |
Other URP features
| Feature name | Supported? | Immediate plans to implement? |
|---|---|---|
| Shader Graph | Yes | |
| Color Mode - Gamma | Yes | |
| Color Mode - Linear | No | No |
| Directional Light | Yes | |
| Point Light | Yes | |
| Spot Light support | No | Support planned for future releases. |
| Area (Rectangle) Light (Baked only) | Yes | |
| 2D Lights | No | No |
| Meshes | Yes | |
| Particles System | Yes | |
| VFX Graph | No | No |
| Post Processing | No | No |
| Additional Lights Limit | Yes (4, WebGL restriction) | |
| Physical Camera | Yes | |
| Camera stacking | Yes | |
| Depth Texture | Yes | |
| Opaque Texture | Yes | |
| Real Time shadows | No | Support planned for future releases. |
| Baked shadows | Yes | |
| Lightmapping | Yes | |
| MSAA | Yes | |
| Reflection Probes (Baked) | Yes | |
| Light Probe | Yes | |
| Fog (Exp, ExpSquared, Linear) | Yes | |
| Skybox (Procedural, Cubemap, Panoramic) | Yes | |
| Terrain | No | No |
| Batching | No | Support planned for future releases. |
| HDR rendering | No | No |
| Line/Trail Renderer | Yes |
